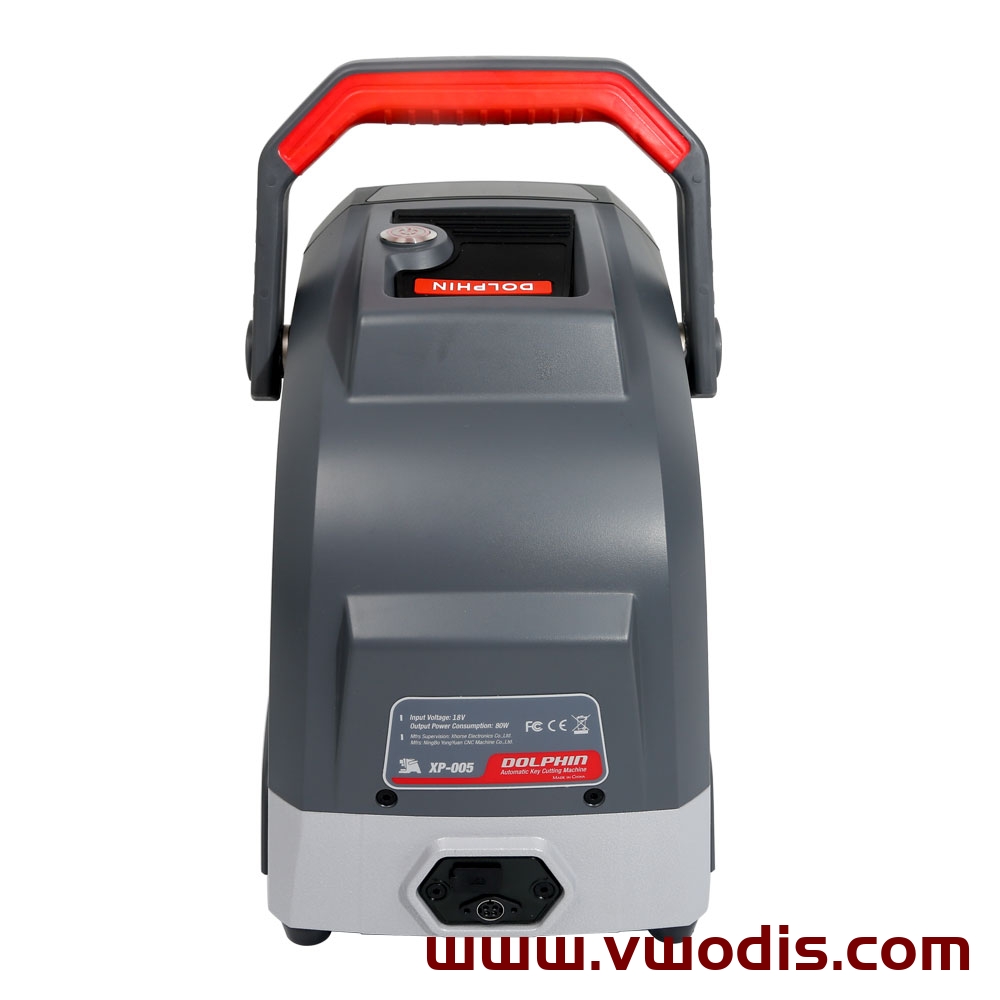

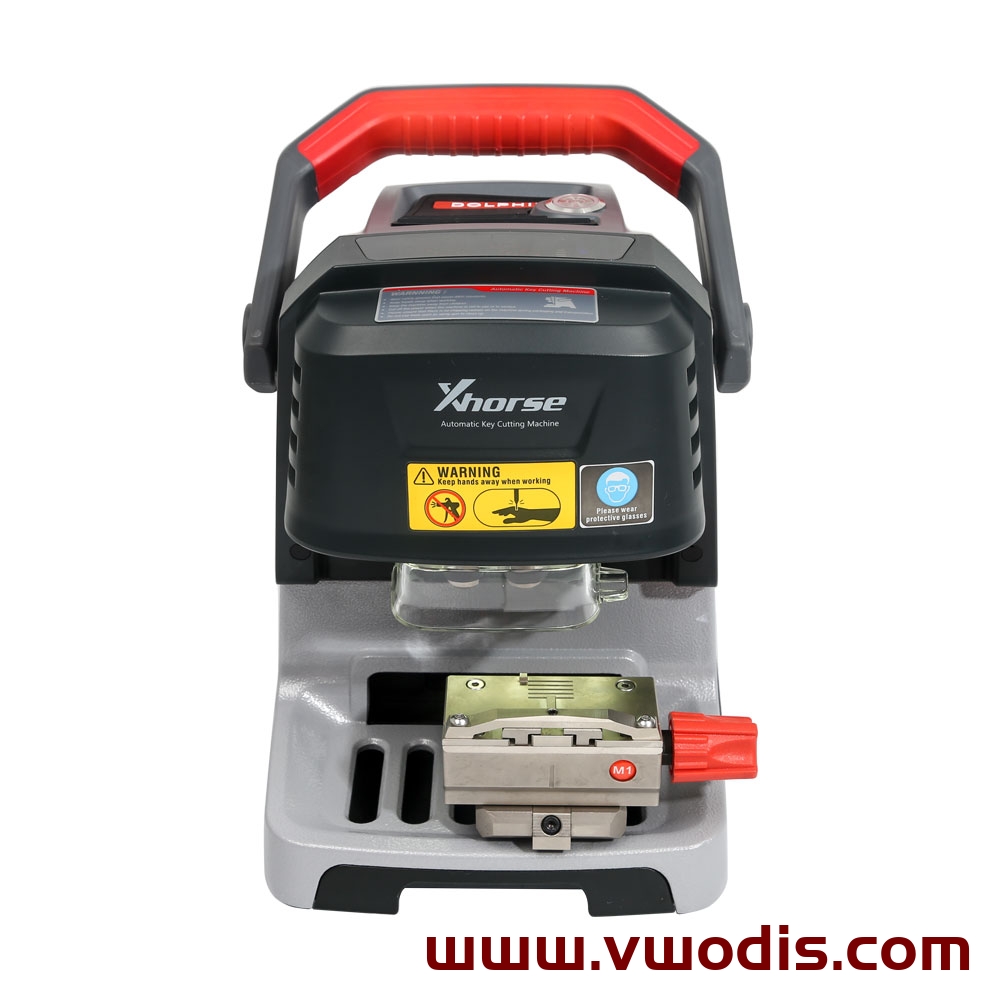

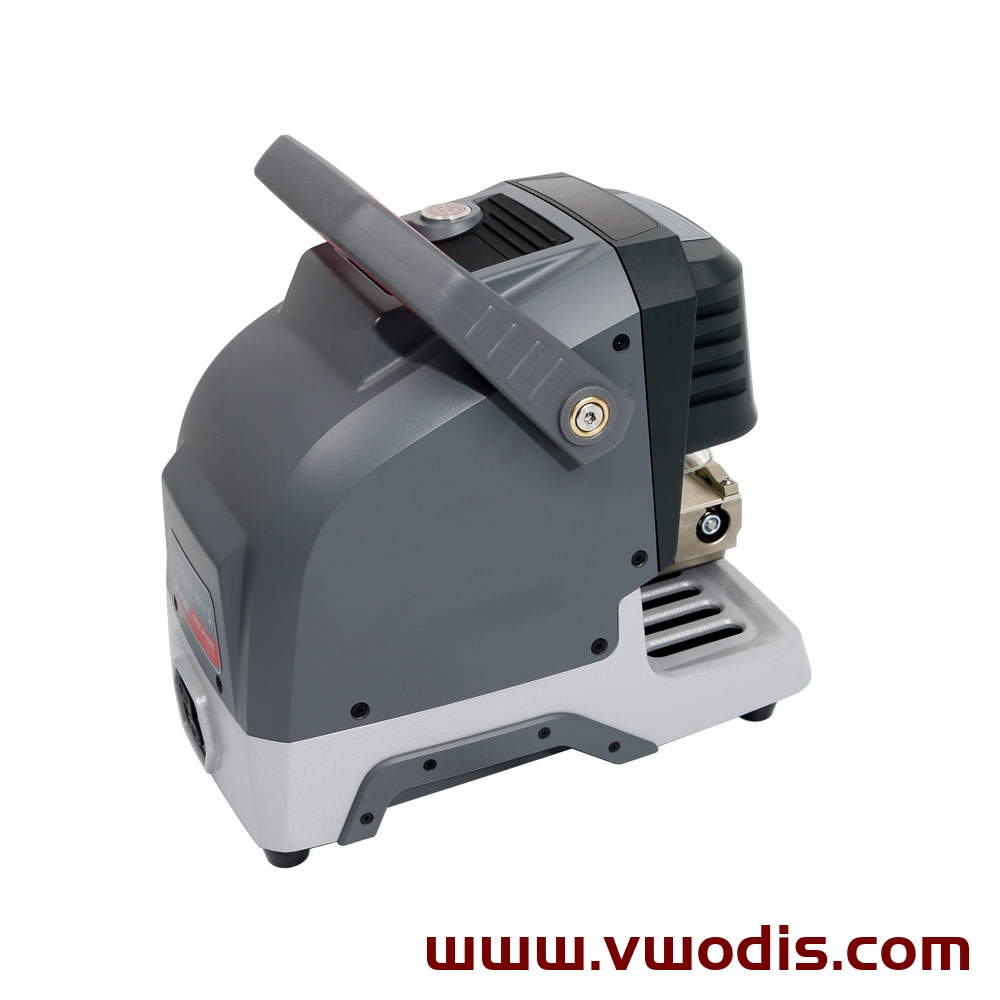

Xhorse Dolphin XP005 Key Cutting Machine
Top 5 Reasons to Get Dolphin XP005:
1. DOLPHIN XP005 is the latest portable automatic key cutting machine with a built-in battery inside.
2. It has all the capabilities of Condor XC Mini.
3. Dolphin works on mobile phone application via bluetooth connection.
4. M1/M2 Jaws included.M3/M4 Jaw – optional purchase.
5.Update Online,Newest verion:V1.4.2
Xhorse Dolphin XP-005 Update Information:
Xhorse Dolphin XP-005 V1.4.1 (2020-05-14)
* This version need to update firmware
* Add cutting preview function(Need use latest APP version)
* Add decoding and cutting optios of the worn HON66 (Need upgrade the database)
* Modify the cutting method of the external key universal key duplication
* Fix the Parameter micro-adjustfunction bug
Xhorse Dolphin XP-005 V1.4.0 (2020-03-28）
* This version need to update firmware
* Improve some cutting strategy
* Change standard double sided default tip cutting strategy
* Fix Electrical Conductivity Measurement bug
* Fixed cutting problem of 2 Track external
* Fix some universal key duplication bugs
Please Use Xhorse Update Kit to update.
Xhorse Dolphin XP-005 V1.3.8 (2020-01-13)
This version need to update fireware
Add “Cut by single-bitting” function(Not support internal track key blank)
Add “Parameter micro-adjust” function
Improve high level adjustment function, not need do clamp calibration every time after high level adjustment
Fix cutting depth not accurate problem
Fix HU66 EXT 9th slot width problem
Fix some universal key duplication bugs
Dolphin XP005 vs Condor XC-Mini vs Condor Mini Plus:
Xhorse condor dolphin xp005 key machine is an entry-level product of the CONDOR CNC machine family. The body design is simple, it is very suitable for mobile use in the mobile scene, without operating screen, you need to connect a mobile phone or tablet, and install a dedicated APN.
|
Item |
Condor Dolphin | Condor XC-MINI | Condor XC-MINI Plus |
| Pic |  |
 |
 |

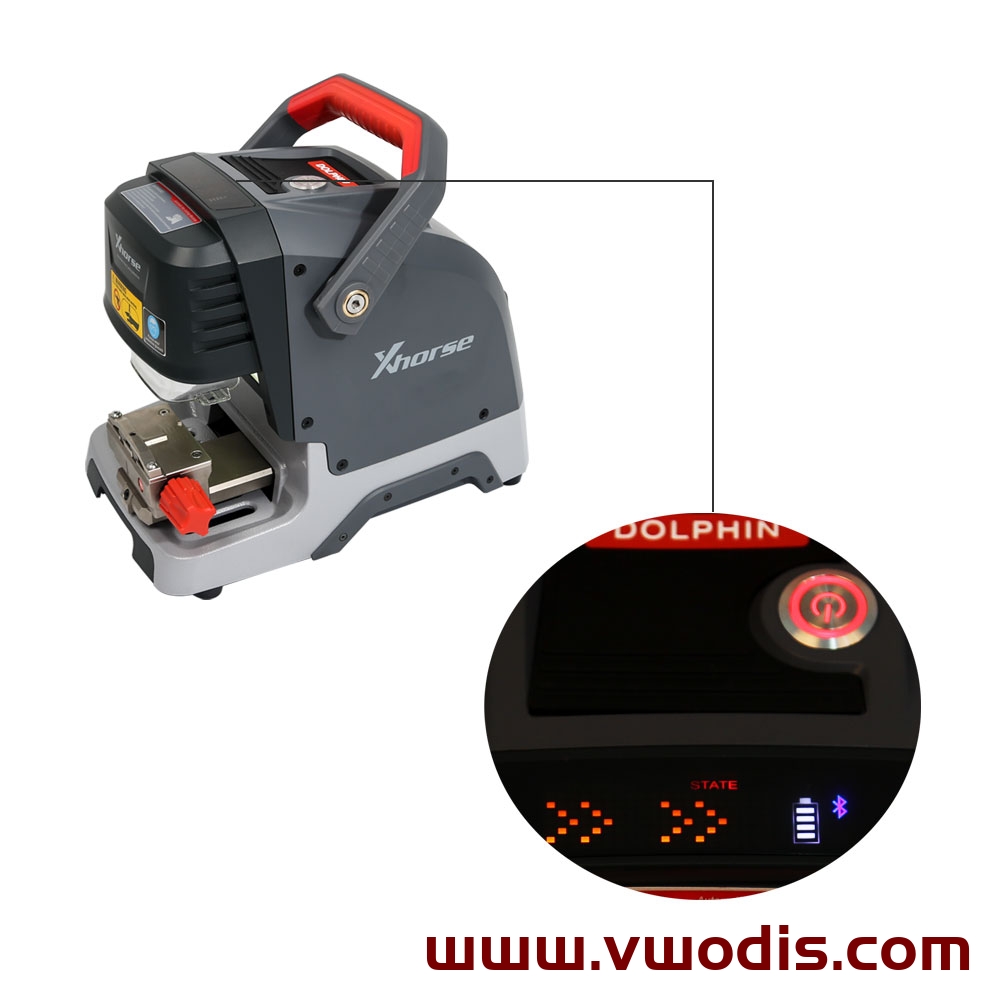

| Screen | No touch screen,only display battery,bluetooth status. | Fixed touch screen. | Screen with adjustable angle, easier to adjust proper viewing angle |
| Spindle | Mechanical shaft +60W DC motor (with a foreign model)”
“Electric spindle brushless 300W, built-in angular contact bearing |
Electric spindle brushless 300,built-in angular contact bearing | Electric spindle brushless 300,built-in angular
contact bearing |
| Transmission mechanism | “T-shaped screw + anti-backlash nut | Ball screw | 3-Axis precision ball screw,more accurate and
stable than T Screw transmission |
| guide | Roller guide | Cross-track | Cross-track |
| shell | Base aluminum alloy die-casting, the upper body is made of
plastic shell and the body is made of integrated aluminum alloy die-casting. |
Plastic outer casing body is formed by body alloying die casting. | All aluminus main body,plastic shell, larger space than condor mini. |
| Fixture | Standard fixture(M1,M2) (M3 M4 Optional Clamp) | Standard fixture(M1,M2) (M3 M4 Optional Clamp) | Standard fixture(M1,M2) (M3 M4 Optional Clamp) |
| Manipulation | No touch screen, no built-in database, operate on Phone APP | Quick start, with touch screen, built-in database | Quick start, with touch screen, built-in database |
| Offline operation | not support | stand by | support |
| Dedicated app | Support dedicated mobile phone APP | INSTACODE Software APP | INSTACODE Software APP |
| Built-in battery | built-in lithium battery one-time full charge | Optional Accessory:Power Supply Adapterwith Built-in Battery | Optional Accessory:Power Supply Adapter with Built-in Battery |
| protecting mask | Comprehensive protection | Comprehensive protection | |
| VVDI MB binding | Yes. After bind,VVDI MB is one token free everyday. | Yes. After bind,VVDI MB is one token free everyday. | Yes. After bind,VVDI MB is one token free everyday. |
| Cutting speed | 1X SPEED | 2X SPEED | 2X SPEED |
| Update | Database update in APP | Online Update | Online Update, support offline file update. |
| weight | 18Kg | 21Kg | 22.9Kg |
| Warranty | 1 year | 3 years |
3 years |
Xhorse Condor Dolphin XP005 vs XP007
Dolphin XP005 is automatic machine working with phone app it’s good machine ,fast and easy on the job.
Xhorse Dolphin XP007 is manual has limitations .
relies on your skill of locksmithing or requires keymoulds for all key lost situation.but it’s also good for cloning keys.
overally xp005 and xp 007 are both good tools that a locksmith should have.
if your are a learning locksmith start with xp005 its good for learning.

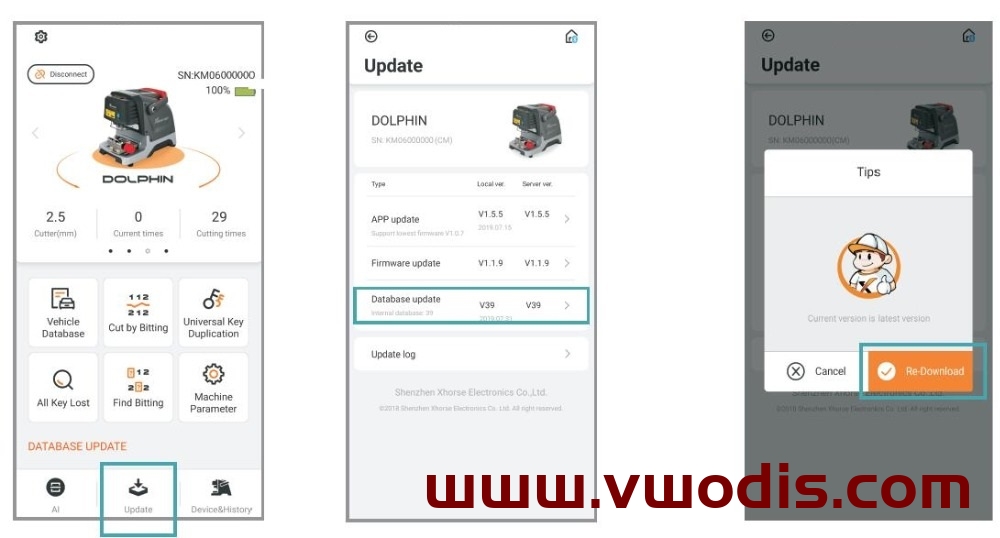

How to Update Dolphin XP-005 Database?
1) Enter Dolphin XP-005 main interface and click “Update”
2) Click “Database update”
3) If you find a new version,click “Update” and download the new version.
Click on “OK” after download database success
If cellphone connected by mobile internet data,a prompt saying that download maybe costs data fee,recommend downloading by WIFI.
How to Update Dolphin XP005 Key Cutting Machine?
Download windows driver if your system can not recognize device
Need only if upgrate kit can not do Frimware update/not recognize device
Also, can be download and install directly from Upgrate Kit

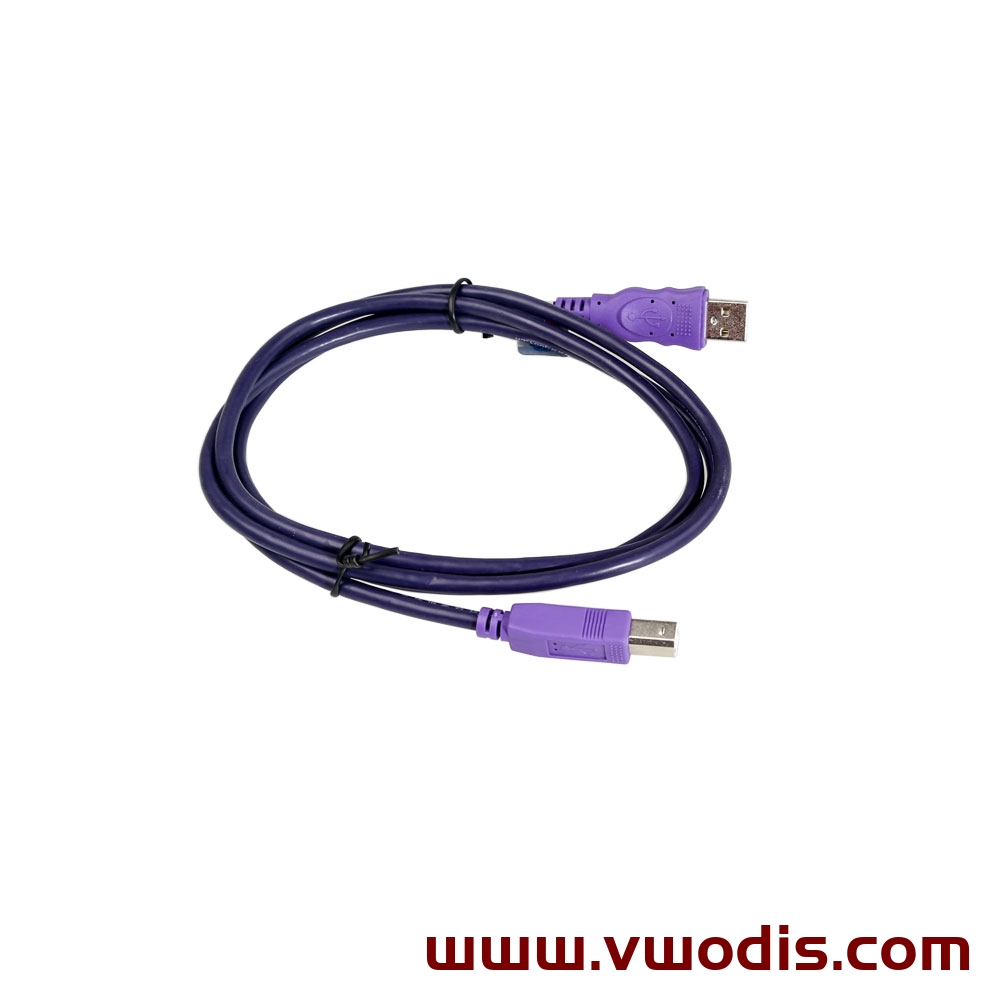

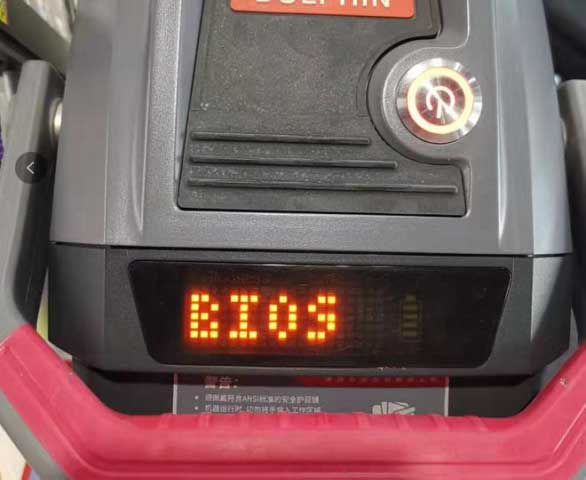

1, Turn on the Dolphin machine and connect it with the computer via USB cable, it will show the BIOS on the screen of Dolphin as below,

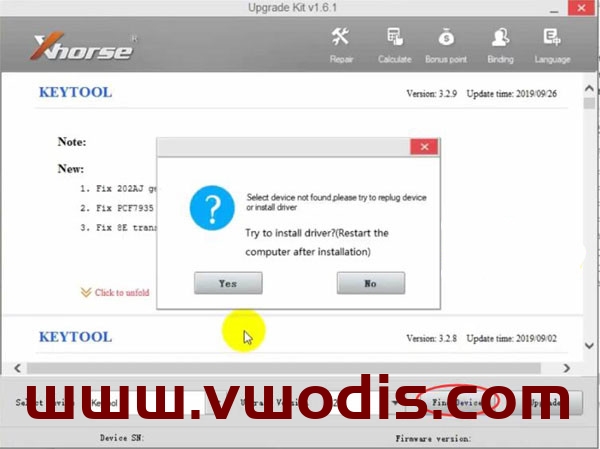

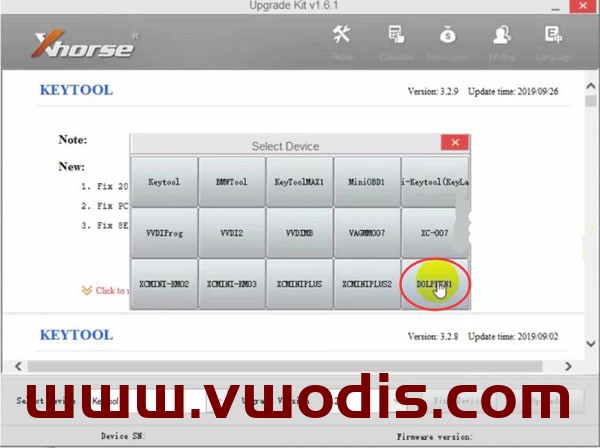

2, Run the upgrade kit and choose “Find Device”, it will be show a small window , choose “Yes” and will guide to install the driver
3, Choose the correct driver according to the machine as below, make sure you are shut down all protection before you install the driver, especially for windows 10 system

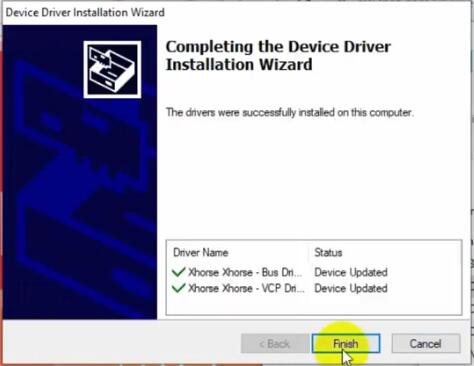

4. Install Windows driver for Dolphin

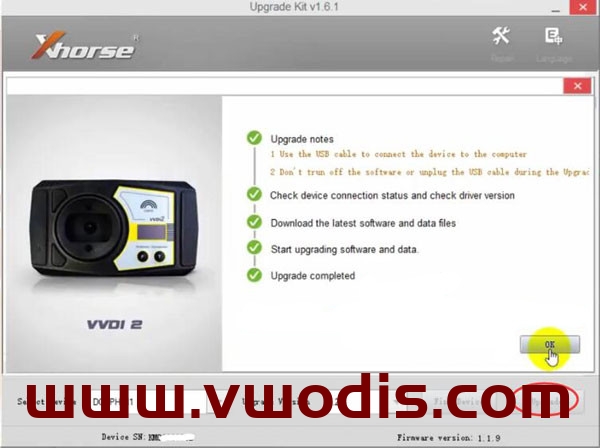

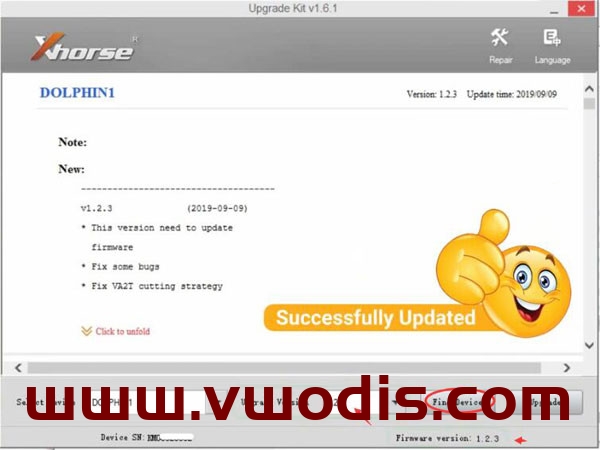

5.After the driver has been installed, run the “Upgrade kit” and choose “Find Device” again, to see if you can see the device serial number and firmware version, do not chose “Update” until it you can see that , because if you can’t find device ,which means the driver is not been installed, and the machine will be blocked if you update it without driver
Xhorse Dolphin XP005 Key Cutting Machine Parameters:
Working Temperature: -10~50℃
Input Voltage: 12-24V
Battery Capacity: 64.75wh
Cutting Power: 100W
Standby Power: 15W
Motor Rotation Speed: 10000-13000RPM
Rated Torque: 0.15 Nm

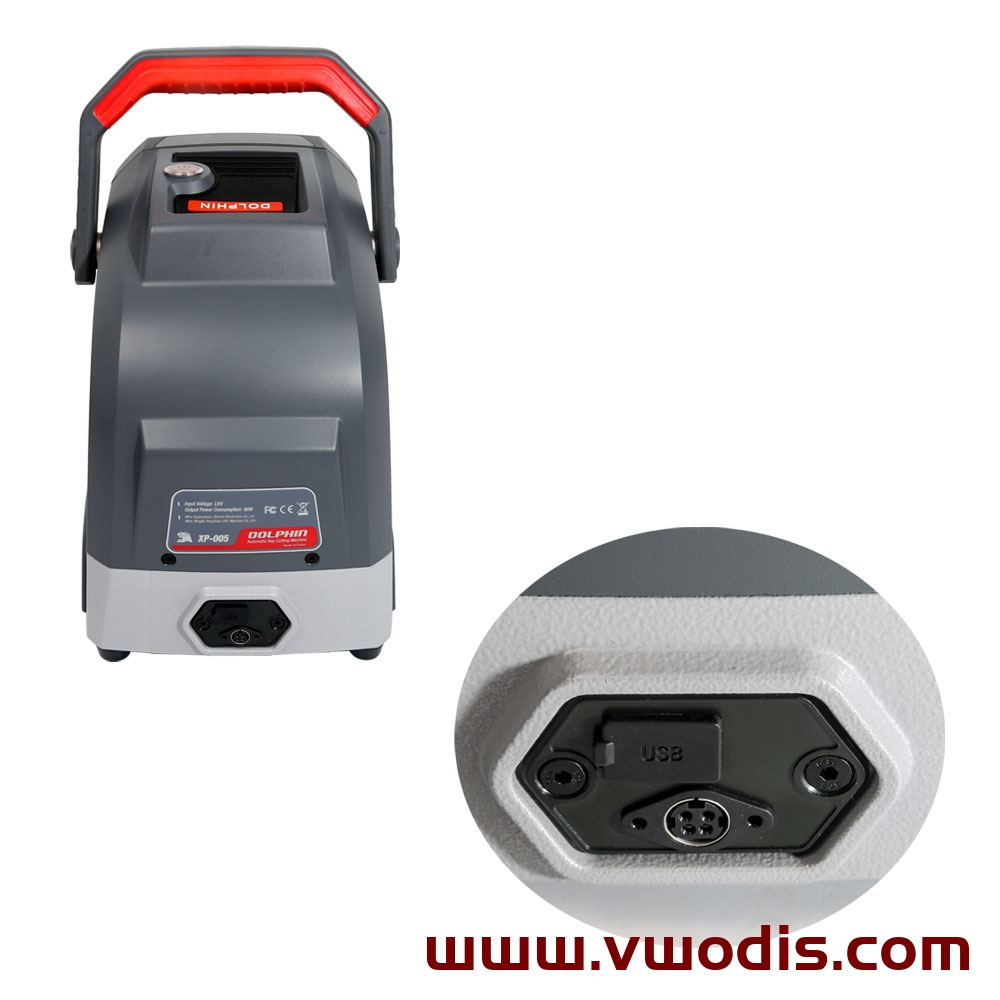

USB Port: USB2.0
Machine Dimension: 315*218*270mm
Package Dimension: 510*315*345mm
Net Weight: 15kg
Gross Weight: 18kg

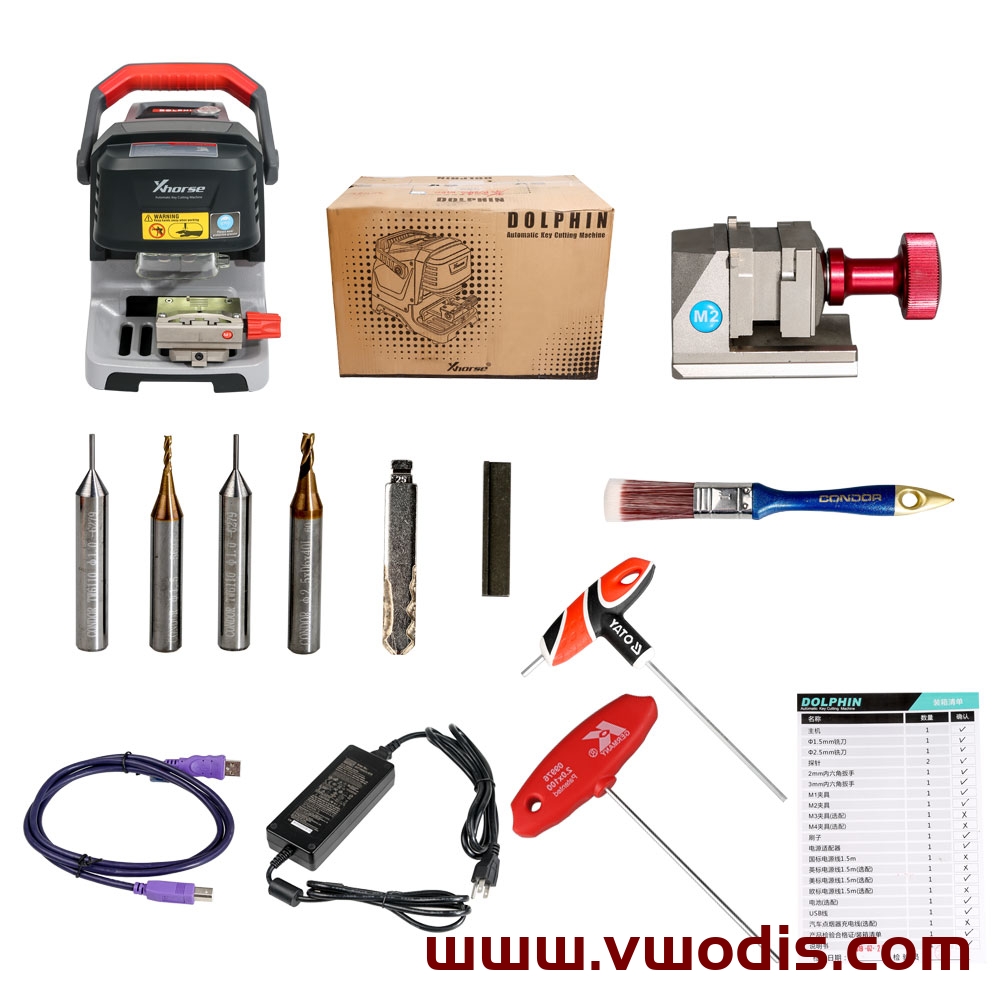

Xhorse Dolphin XP-005 Package List:

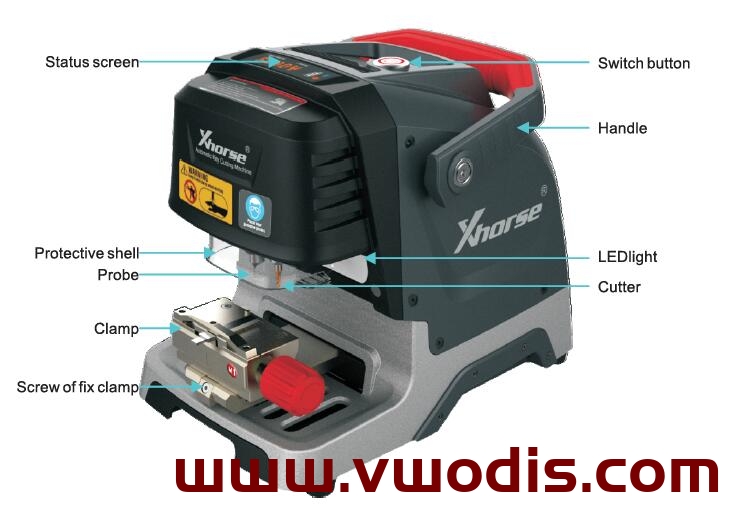

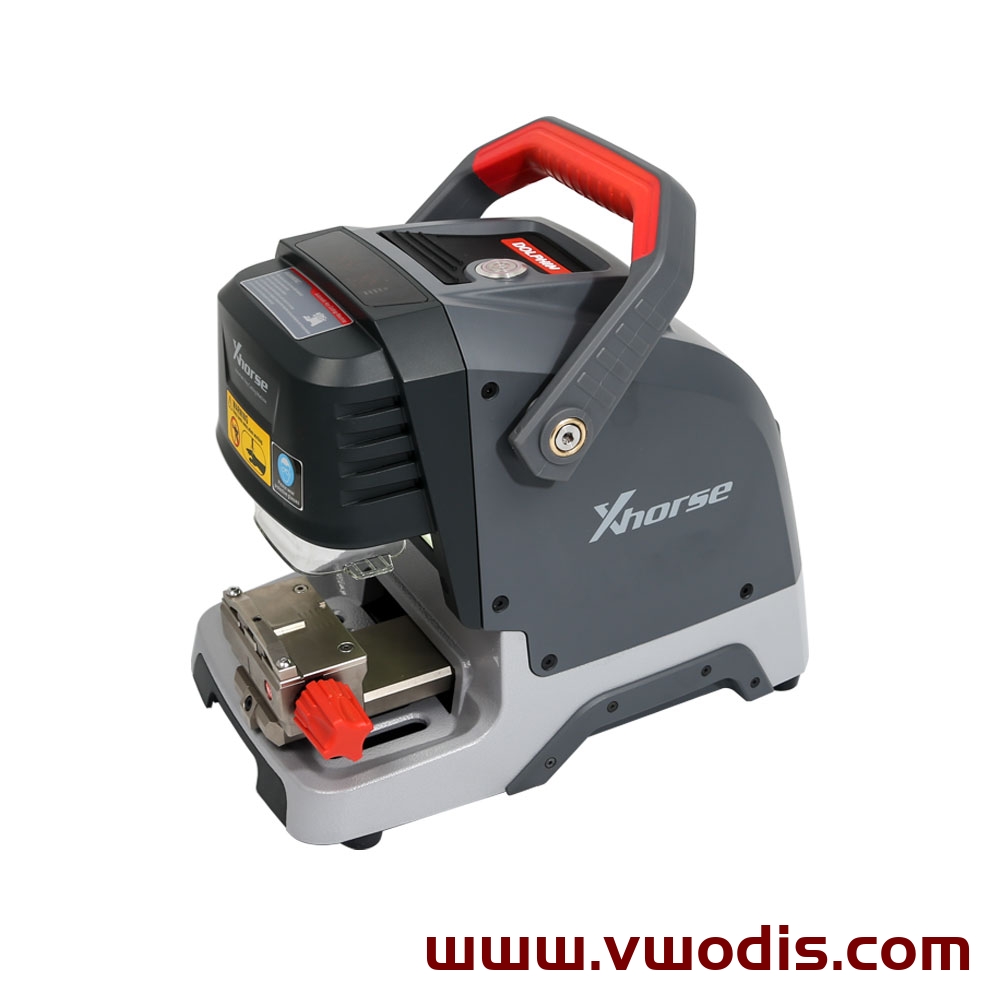

1pc x Condor Dolphin Main Machine

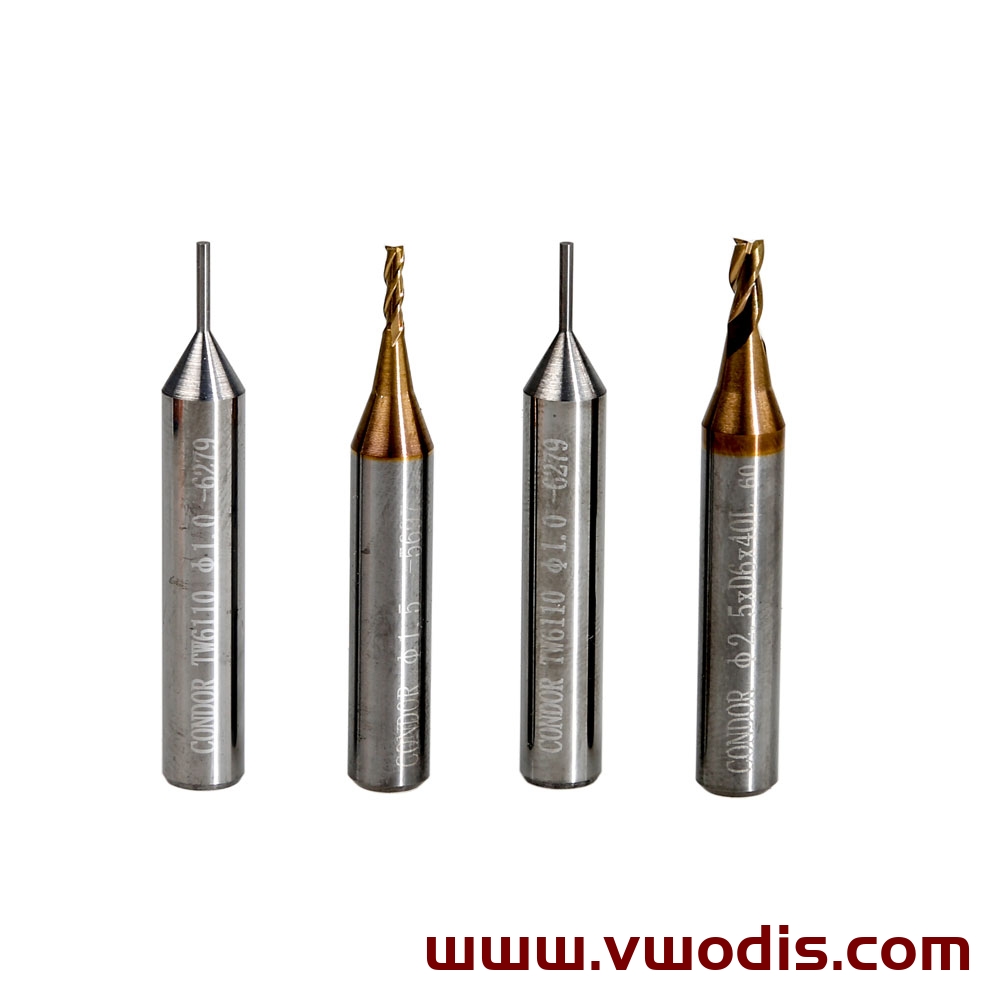

1pc x 2.5mm cutter
1pc x 1.5mm cutter
2pc x Probe

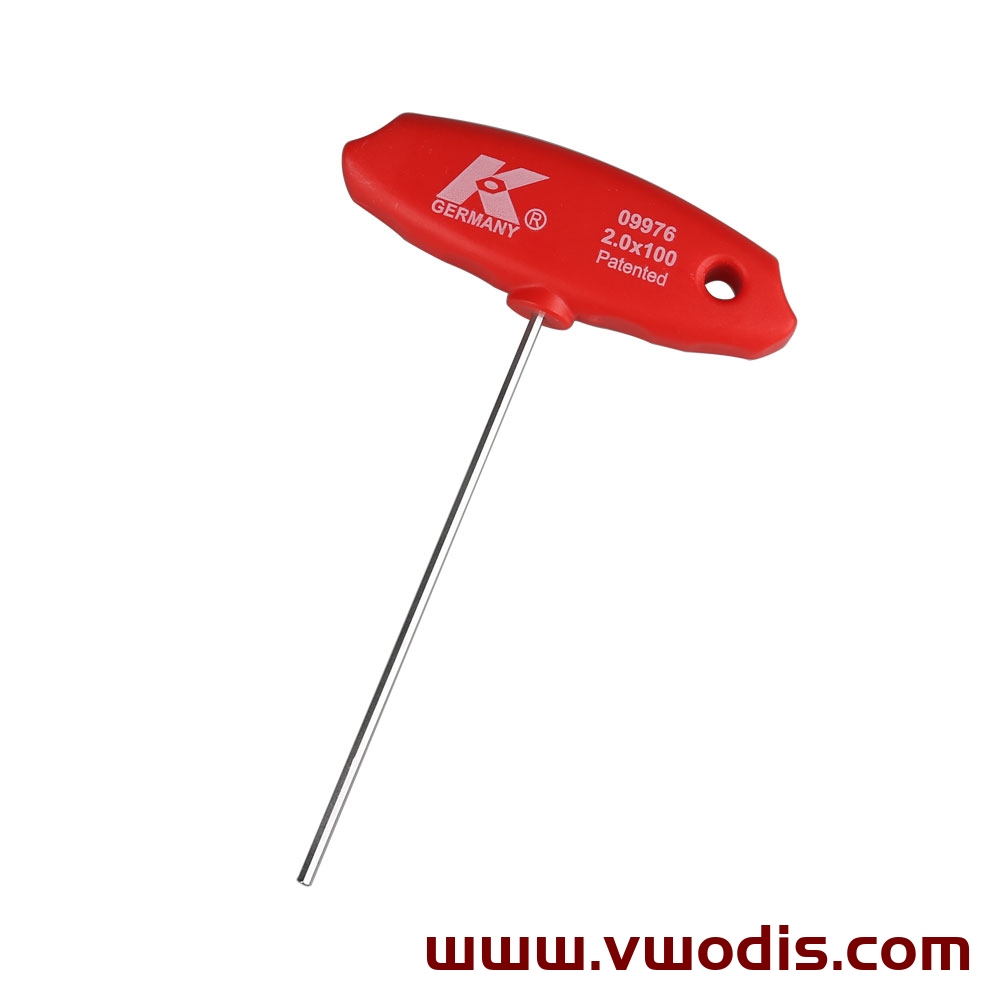

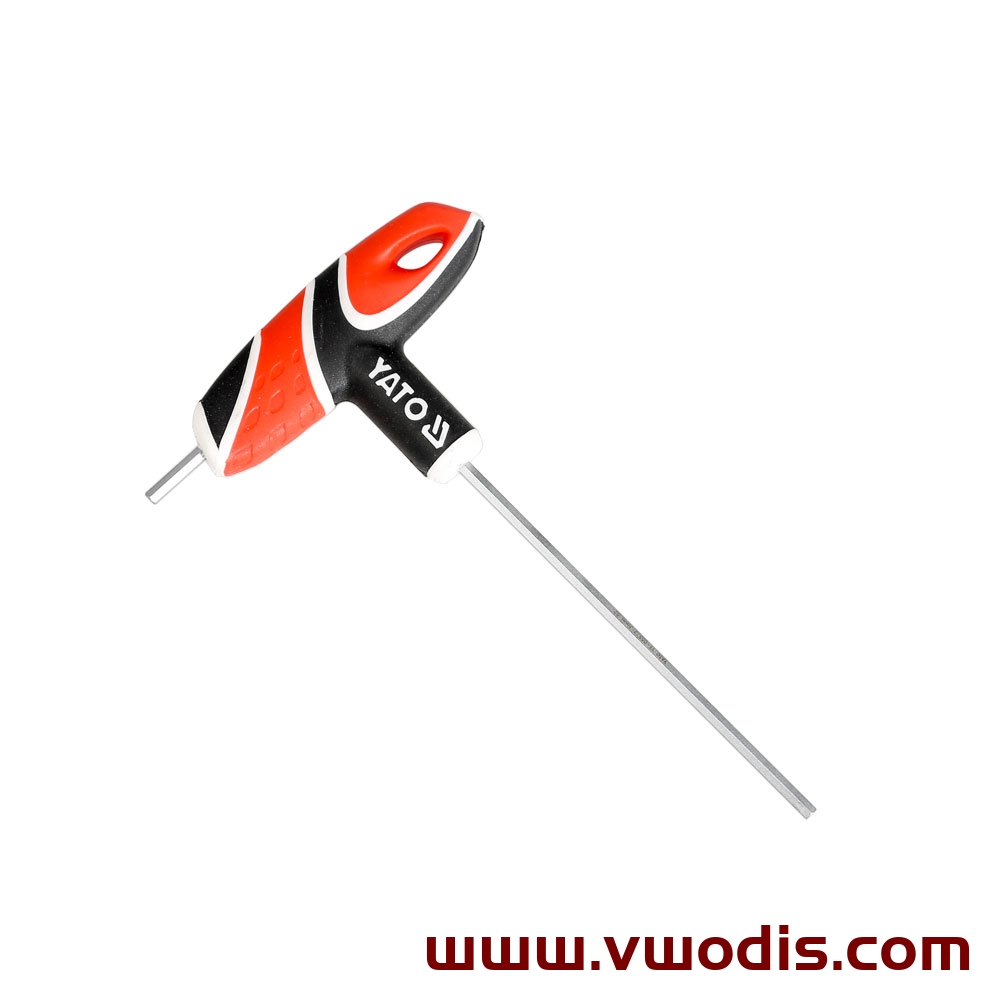

1pc x 2mm Hexagon bar wrench
1pc x 4mm Hexagon bar wrench

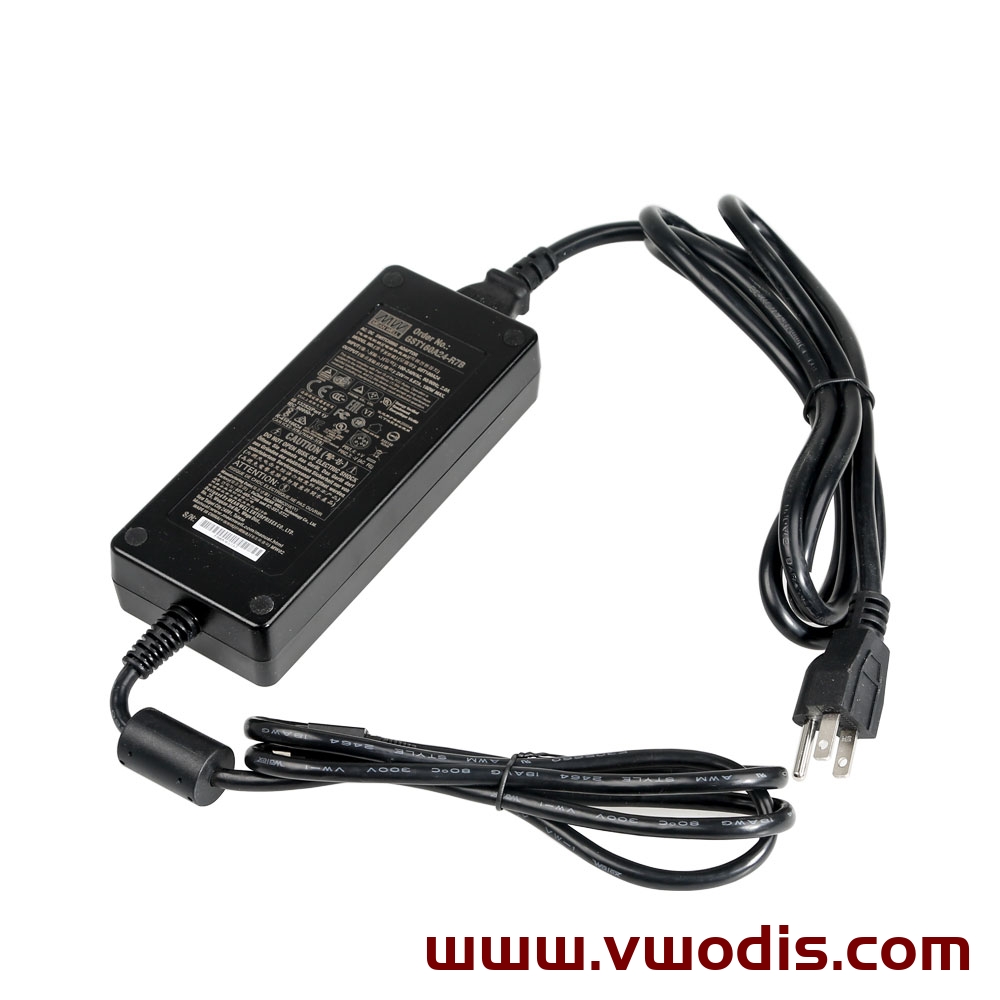

1pc x Power Adapter

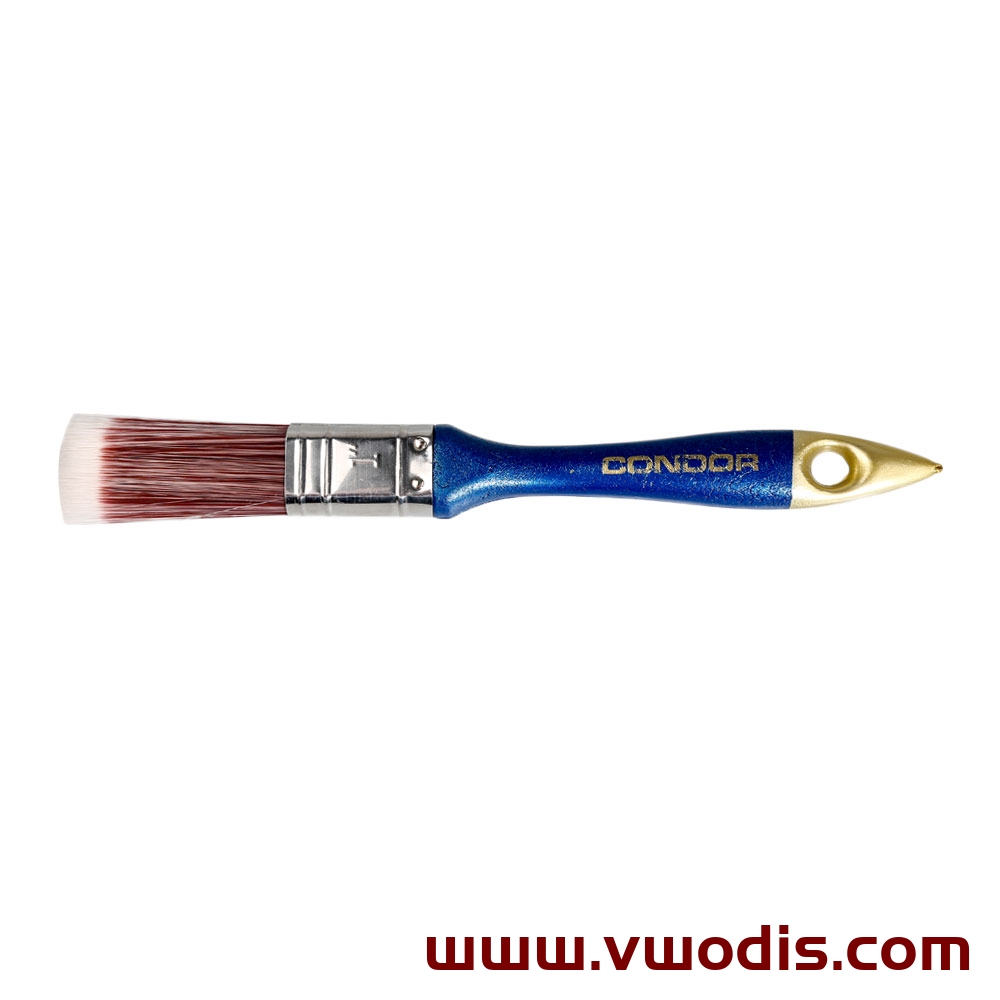

1pc x Brush

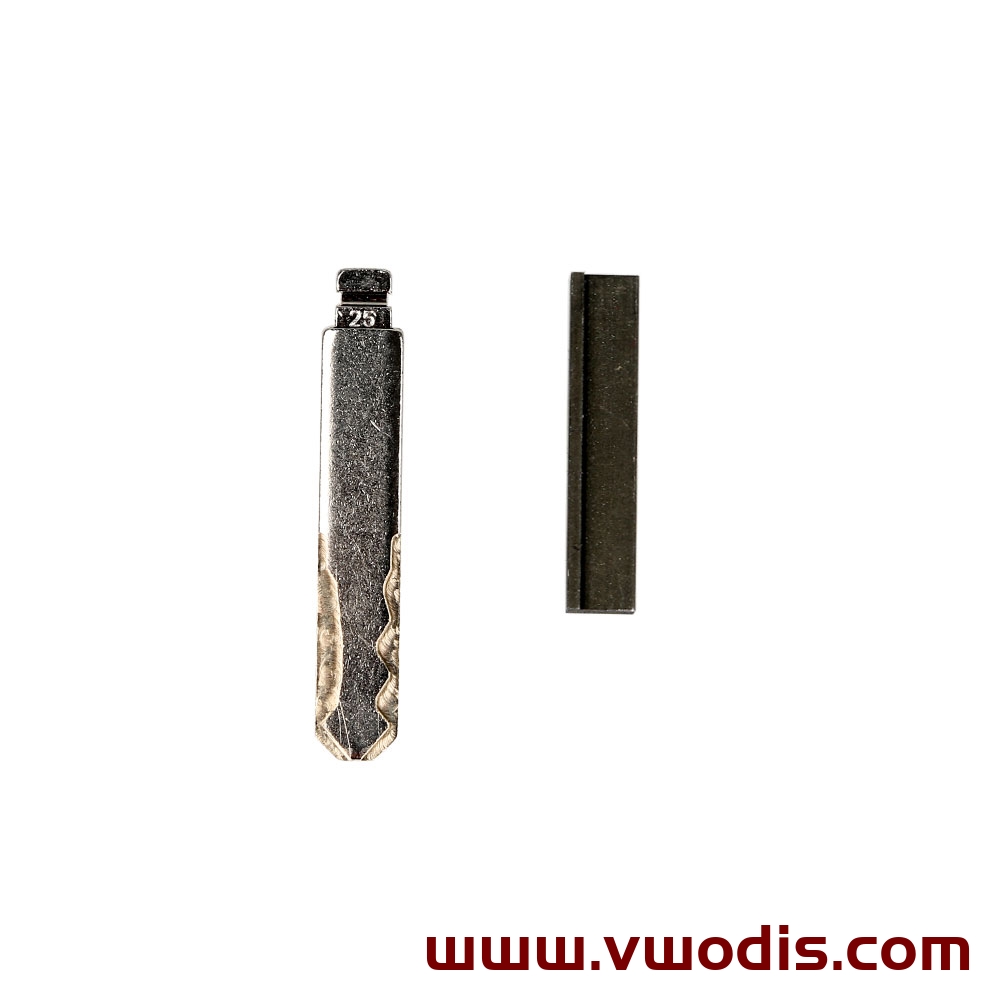

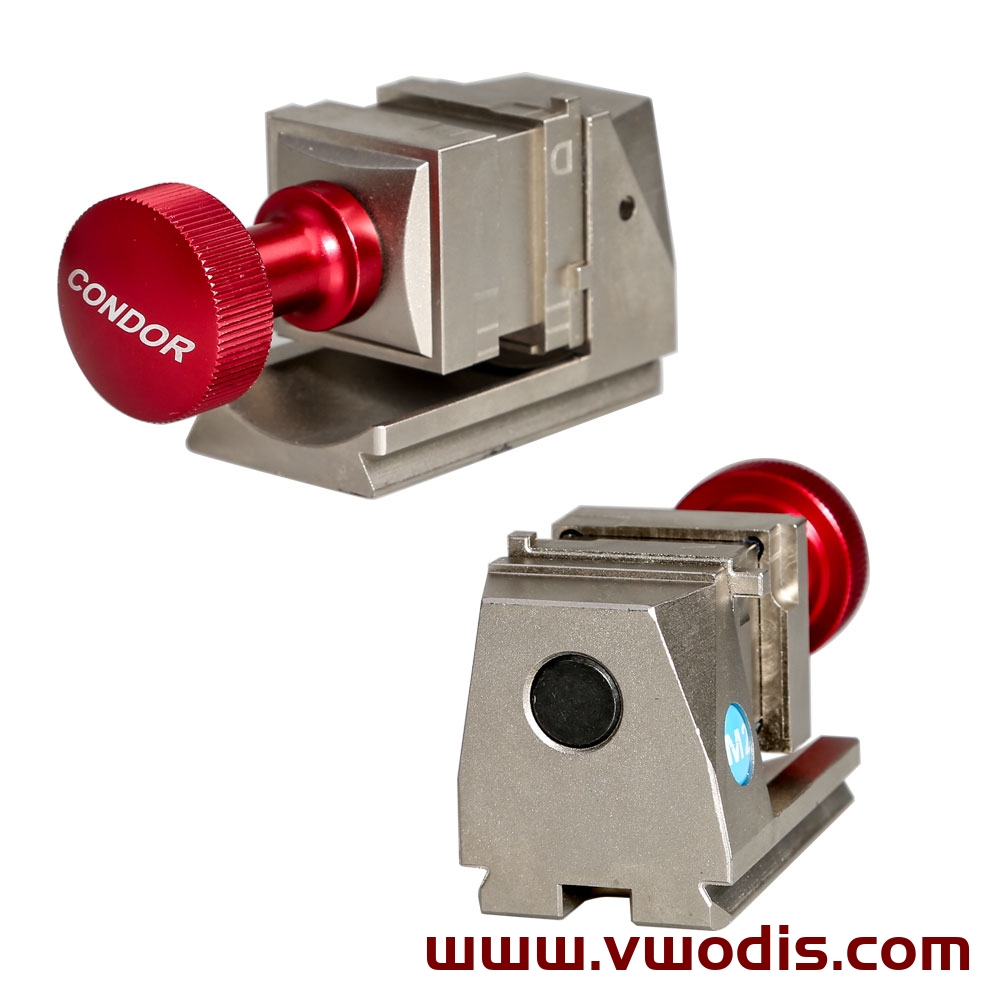

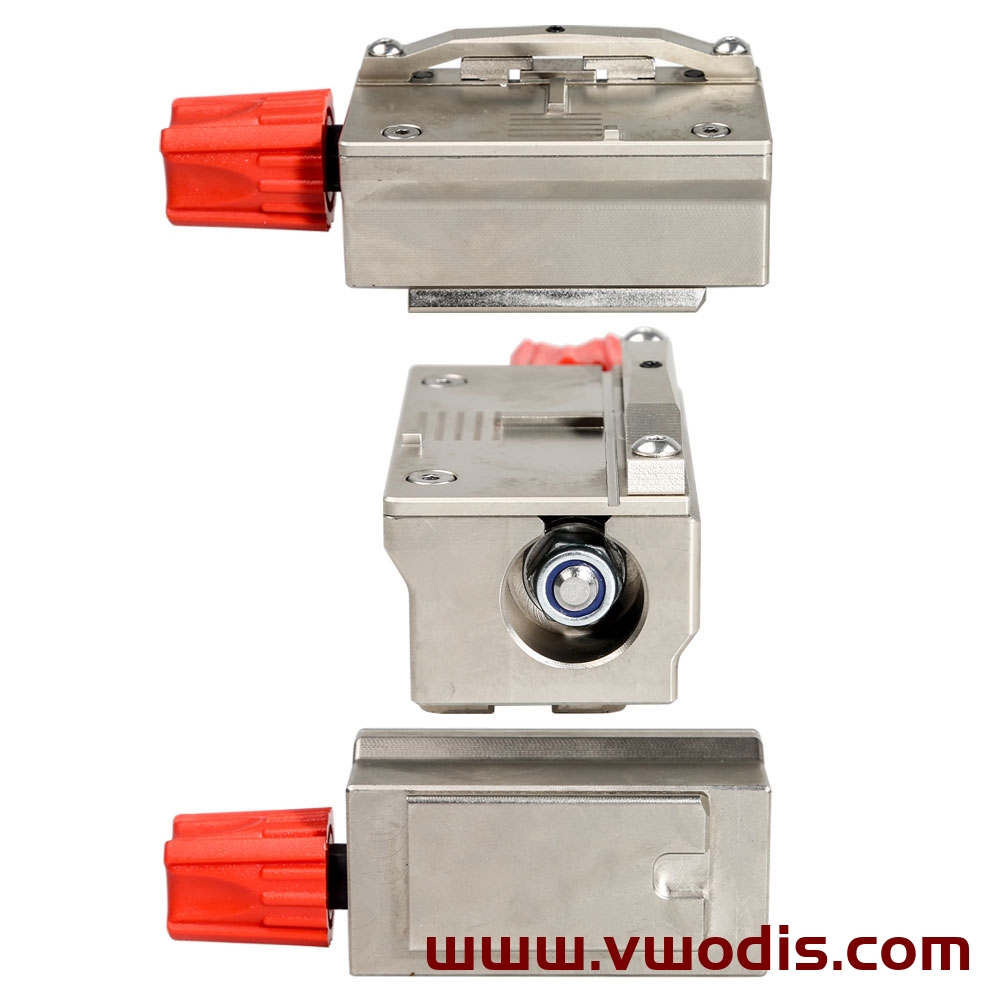

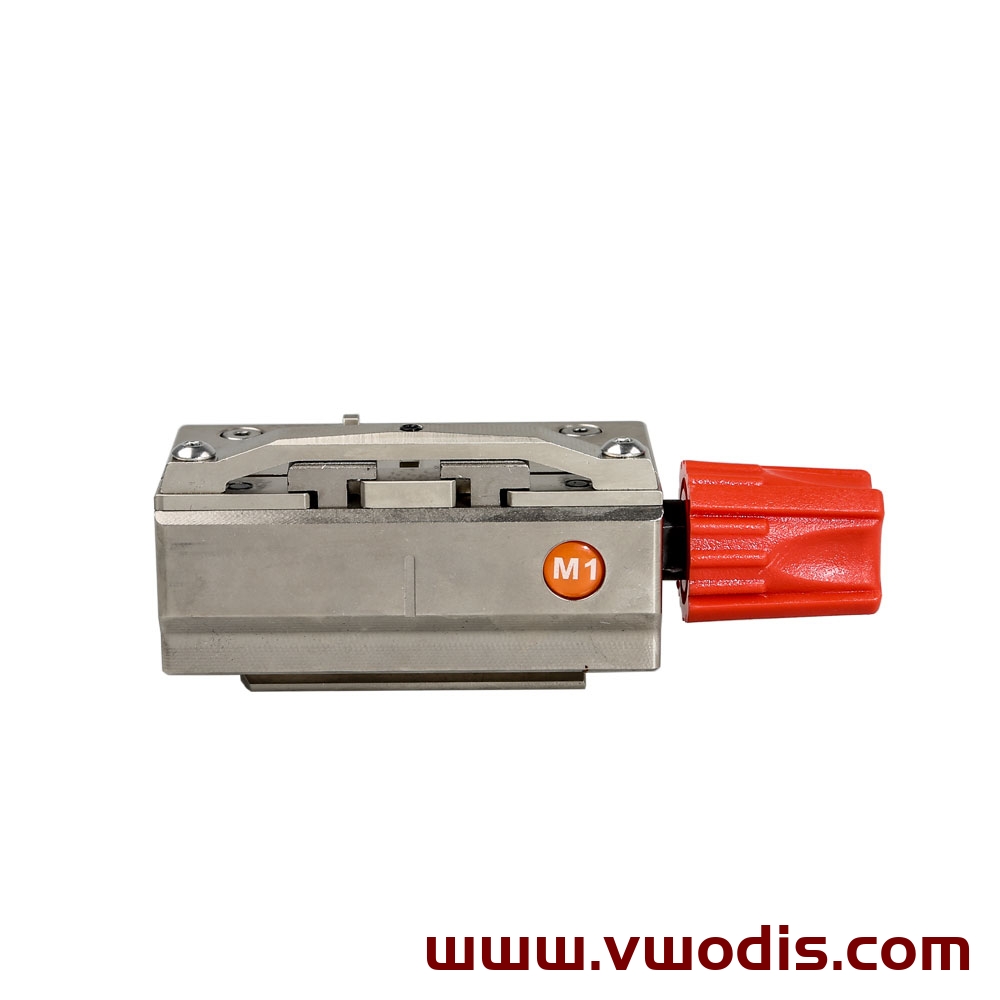

1pc x Clamp M1 & Link Stopper

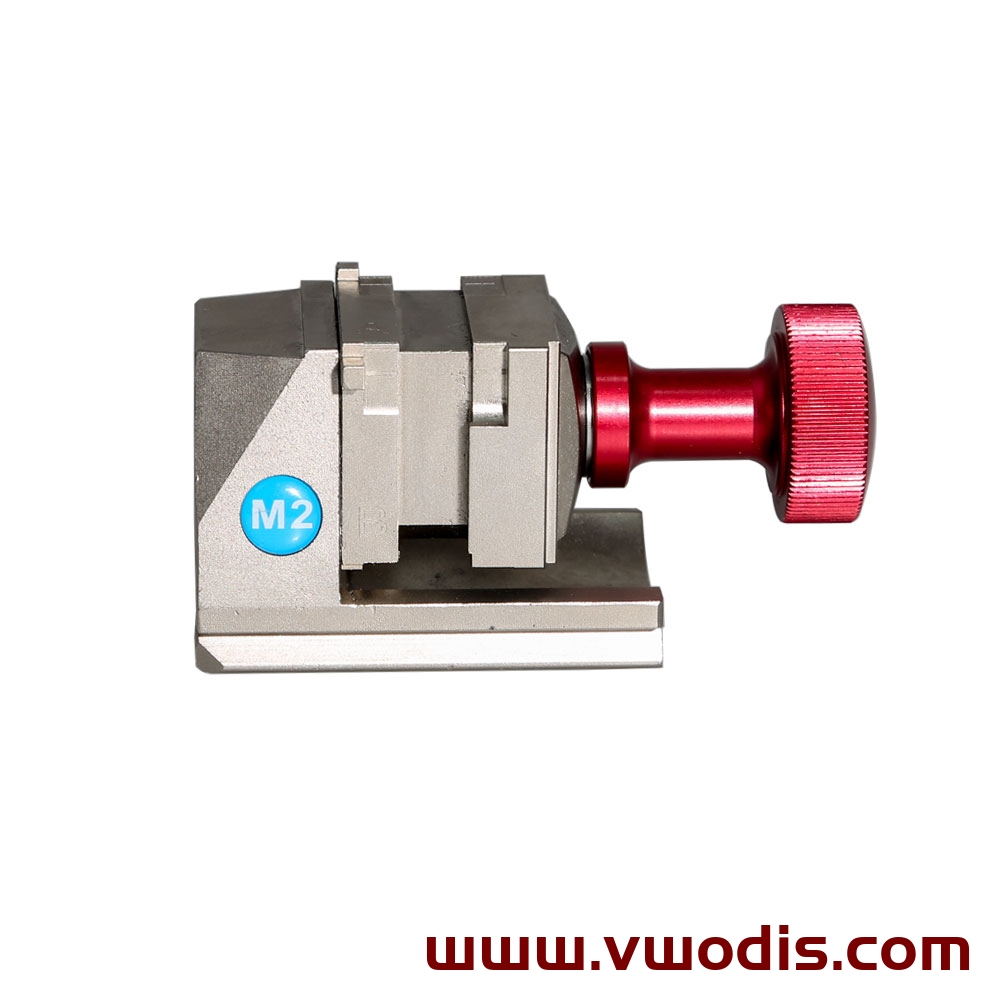

1pc x Clamp M2 & shim
1pc xClamp M3(Optional)
1pc xClamp M4(Optional)
1pc x Product Quality Certificate
1pc x User Manual
