If you choose us dollar settlement, please contact customer service to modify the price to 680$.

Xhorse DOLPHIN XP007 Manually Key Cutting Machine for Laser Dimple and Flat Keys

Xhorse Condor DOLPHIN XP007 Manually Key Cutting Machine



What are the advantages of Condor Dolphin XP-007?

Smaller and lighter. Condor Dolphin XP-007 is 14KG only.
Condor XP-007 with better price.
More powerful function.
With Built-in Lithium Battery. (Optimized lithium battery of well-known brand, stable and reliable, support cutting under no power conditions.)

Xhorse Condor DOLPHIN XP007 Function Characteristics:

Professional Design
Attractive appearance, small and portable, ergonomic control design

Precision Production
All aluminum body structure, Manufactured by Germany-made DMG CNC machine

High Efficiency Cutting

120W DC brushless motor, designed 2 switches for adjustment speed, high efficiency cutting, support multiple materials of the key blank.

Precision Cutting
With micro-adjust probe, Spring preloading type fine-tuning structure, ensure cutting accuracy;With this structure it can position the original key in advance, in case the spring vibrating caused cutting error, good for accuracy

Built-in Lithium Battery
Optimized lithium battery of well-known brand, stable and reliable, support cutting under no power conditions

Clamps
Standard equipped multifunction clamp, support Sided, Track, Dimple and Tibbe keys

Technical service
One year warranty, free technical support, online service to provide remote control support

Xhorse Dolphin XP007 Workable Car Key Type:

Key Type Schema Clamp Side Illustration
2 Track External A/B 1.The key type available
for side A and D are the
same,please make the
selection according to
the cutting depth2.When cutting dimple
key,please use the
specific cutter.
A/C
4 Track External A/D
A/D
Channel Track A/D
A/B
A/C
4 Track Internal A/D
Dimple A/D

Xhorse DOLPHIN XP007 Manually Key Cutting Machine for Laser Dimple and Flat Keys

Xhorse Condor DOLPHIN XP007 Specifications:

Charging Voltage:                          12-18V
Battery Capacity:                            64.75Wh

Consumption:                                120W
Main motor speed:                        Highest:13000 RPM switch 1:7000 RPM switch 2:10000 RPM
Rated Torque:                                Switch 1:0.12 N.M   Switch 2:0.16 N.M
Travel of Spindle:                           25mm
Table Travel:                                   Transverse 36mm  Portrait 48mm
Working temperature:                   0-50℃
Working Humidity:                        0-90%
Net Weight:                                   11.5Kg
Gross Weight:                                14Kg
Machine Dimension:                      282*246.5*355mm
Package Dimension:                      365*325*350,mm

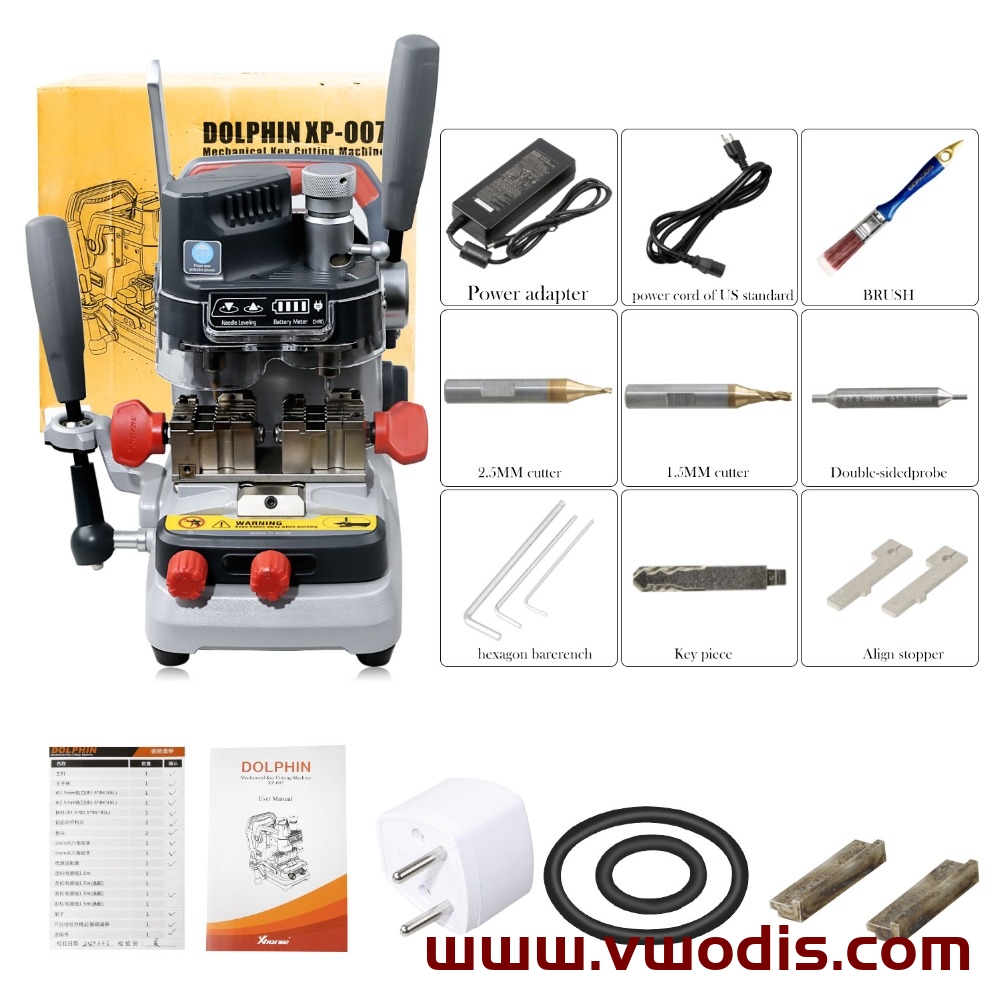

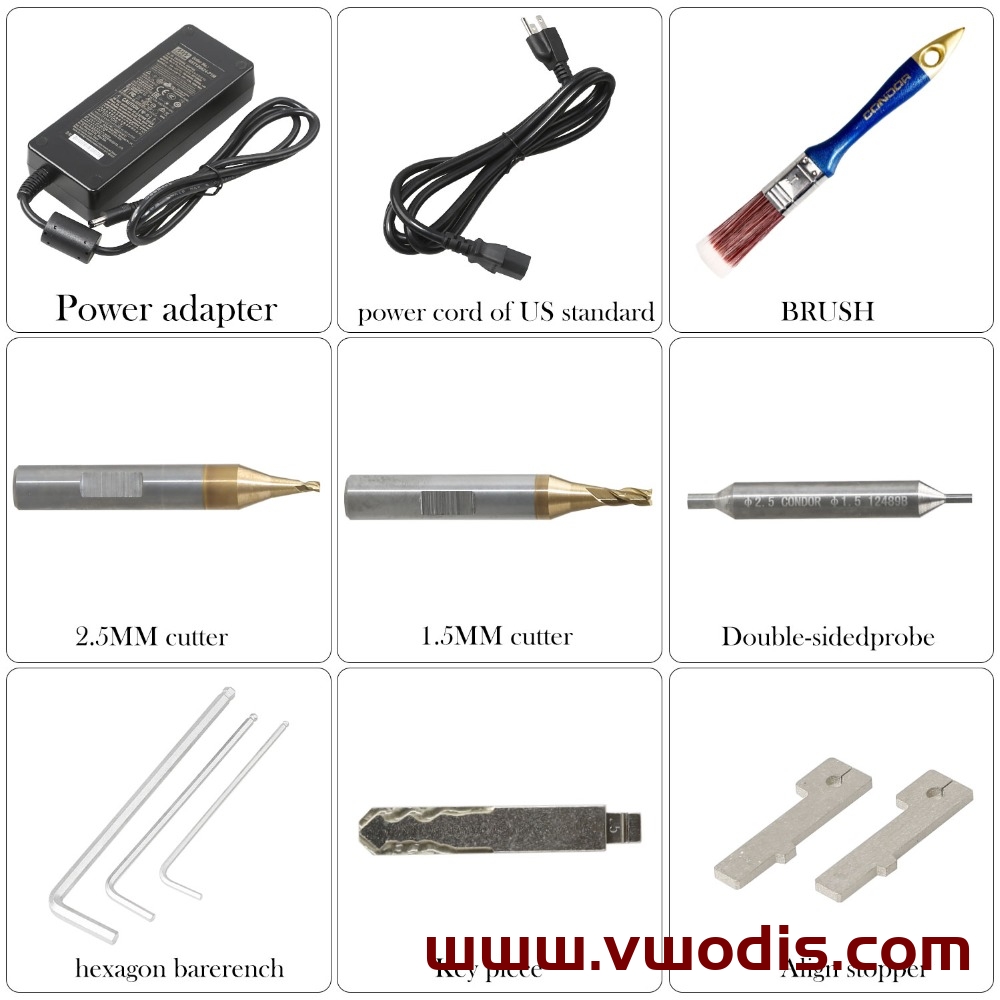

Package List:
